Roof Components

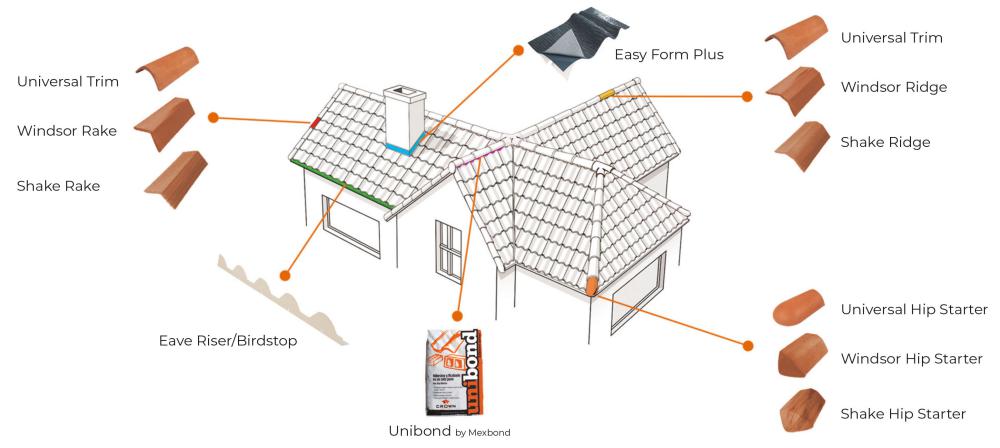

At Crown we have the roof components needed for proper roof tile installation, which together with our Roof Tile and Standard Trim



The selection of the roof tile model is one of the most important processes in your project, because it is a decision that is hard to change; furthermore, aside from lasting a long time it clearly sets the architectural style of a house or project.

UNIBOND

The Unibond  Mortar is product composed of portland cement, aggregates, polipropilene fibers and proprietary chemical additives which has proven to have excellent adhesive power and good workability. It is also very durable having a high level of elasticity and water sealant properties.



Advantage

• Comes in wide range of colors

• A uniform and long lasting color is obtained

• Allows for clean and sample installation process

• Contains additives and fibers that improve the properties of the product

• Provides saving of time and money

• Reduces to a minimum material waste

Standard Colors

Mission Terra Cotta

Spanish Antique

Burnt Terra Cotta

Sunset

Navajo Blend

Santa Barbara Blend

Nueva España Blend

Crimson Red

Burnt Red

Desert Sand

Cat’s Eye

Birchwood

Fireclay

Ironwood

Madera Blend

Hacienda

Cimarrón Blend

San Antonio Blend

Lead Gray

Chaparral Blend

Cordoba

Wheat Harvest

Tumbleweed

Khaki Brown

Barkwood

Sonora Blend



UBS001

UBS001

UBS001

UBS001

UBS001

UBS001

UBS001

UBS002

UBS002

UBS003

UBS003

UBS004

UBS004

UBS004

UBS004

UBS005

UBS005

UBS005

UBS006

UBS006

UBS007

UBS007

UBS008

UBS009

UBS009

UBS010

Premium Colors

Sea Green

Nature’s Green

Dusk

Charcoal Black

Thunderstorm Blend



















UBP001

UBP001

UBP002

UBP002

UBP002

EASY FORM PLUS

Universal Flashing with extra metal grid



Easy Form Plus® is a lightweight, environment friendly universal flashing that can be used for the sealing of almost any part of the roof.  The material is flexible up to 30% due to its crepped paintable aluminum surface composite.  It comes with an extra metal grid that molds easily to the contours of the roof and walls and is particularly effective on corners. The butyl underside makes it very durable and it does not suffer from wind uplift.

1. Paintable creped aluminium composite



2. Metal grid



3. Butylon backing



4. Release paper - divided in two strips



The choice is yours!

Easy Form Plus® is a safe, lead-free product, that is easier to use and less expensive than lead and it provides superior performance.  Simply cut and form to size needed and it’s ready to be installed directly on the roof.

Min roof pitch



Resistance



Temperature resistance



Installation temperature



Butyl adhesive



UV stability



Thickness

≥10° or 2/12



Does not rot, is weather-resistant, resistant to frost, aging & changes in temperature



-68º to +176º F



+41º to +104º F



Should be applied to suitable surfaces only, which are dry & dust free



UV stable due to metallic upper surface



1.2 mm Water column. Watertight

ACRYLIC SEALER

Features and Benefits:

• Bonds with concrete to form a Water-Proof substrate

• Reduces Ultra Violet Fading

• Stops Efflorescence from occurring

• Retards Mold and Mildew from growing

• Sealed less porous tiles will provide self-cleaning properties with wind and rain

• Easy to apply direct application formula

   *Available in one gallon and five gallon containers
